Condenser Coils

Product Details

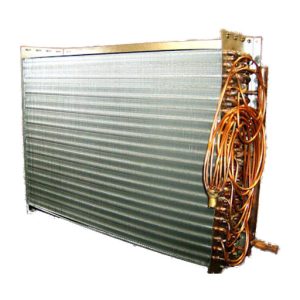

Our condenser coils are designed for top performance. Their key feature is the high-efficiency sine-wave fin, which offers excellent heat transfer and is resistant to clogging.

Unlike traditional fin designs with louvers or lances, our sine-wave fins are easy to clean, preventing the buildup of airborne contaminants like cottonwood.

These condenser coils are built to withstand the elements and maximize heat rejection, helping reduce energy consumption.

  • High-Efficiency Sine-Wave Fins: Our fins provide excellent heat transfer and are resistant to clogging, ensuring long-lasting performance.
  • Low Air Resistance: Reduced airflow resistance improves system efficiency and reduces energy consumption.
  • Customizable Options: Choose from a variety of casing materials, headers, fittings, and tube configurations to meet your specific needs.
  • Casing:
    • Galvanized Steel
    • Stainless Steel
    • Aluminum
  • Headers:
    • Copper
    • Fittings: MPT/FPT, Water Bead, Special
  • Fins:
    • Aluminum
    • Copper
    • Sine Wave
    • Flat
  • Tubes:
    • ½” Copper: .016”,.025”,.035”
    • 5/8” copper: .020”, .025”, .035”
  • Wall Thickness: .016″, .025″, .035″, .020″, .025″, .035″

Need a custom condenser coil solution? Contact our condenser coil manufacturers at Great American Coil to design the perfect coil.
